Nexun Perovskite LED Solar Simulator
The Perovskite Solar Simulator
For Production and Lab
A+A+A+ Pulse & Steady-state Preconditioning light
Designed for Perovskite
Steady-state preconditioning light
Full LED Technology
Shortest cycle times, no consumables, best stability.
World’s Largest area for LED Technology
Standard 1500 x 2700, Up to 1800 x 3000mm
A+A+A+ Flash Pulse
For accurate measurement
Steady State Light
The steady-state preconditioning light spectrum can be customized to match the perovskite spectral response
World’s Longest pulse for the A+A+A+ Class
500ms at a LTI of 0.3%
Designed for Perovskite
The Nexun Perovskite is a solar simulator comprising of a
Steady-state preconditioning light source, and,
An A+A+A+ 500ms pulse flash
The switch from the steady-state light source to the A+A+A+ pulse is instantaneous.
It combines the necessary preconditioning requirements while providing an A+A+A+ spectrum & uniformity for the IV measurement.
The steady-state light source can be customized to match the spectral response of the perovskite device.

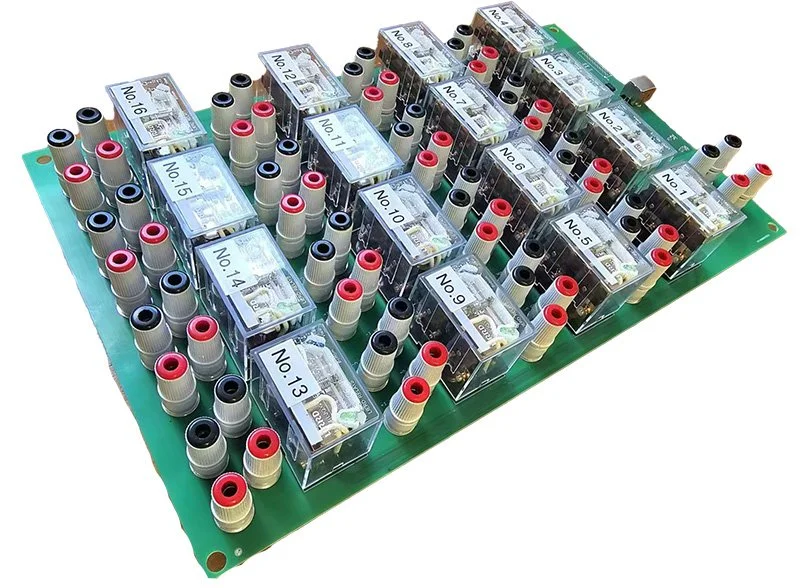

Multiplexer for up to 16 sub-panel
Measure sub panels efficiently with this multiplexer. Automatically controlled by the software, create your customized measurement sequences.
Best Class Light Uniformity
The 150x150mm LED Matrix allows precise control of the light non-uniformity, no matter the active area size!
Everything is controlled by software, no hardware adjustment, no sticker, no paint!
Guaranteed < 1% non-uniformity, 0.5% reachable.
Affordable
We have put a lot of engineering to provide the best performance and the lowest cost. The Nexun Perovskite is the best performance/cost system you will ever find in the market, especially for technologies like PERC, HJT, or Bifacial.
No Consumable
The Nexun Perovskite is a Full LED Solar Simulator which requires no consumable.
Optional Thermal Chamber
15-75°C
The fully automatic thermal chamber allows measurement across 15-75°C.
Save time and work for your team!
Perovskite Temperature Coefficient
The Nexun One is the only system on the market that allows you to measure the highest hysteresis HJT panels can be measured in a single flash. Making the temperature coefficient measurement of these new technologies like a breeze.
Performance Where It Matters
300 - 1200nm A+ Pulsed Spectrum
Customizable Steady-State pre-conditioning Light
The Nexun Perovskite is designed to match the Xenon spectrum while adding the advantage of the LEDs. Its deep-IR LEDs ensure that lightly covers up to 1’200nm.
The Nexun Perovskite features:
±10% A+ Band Match
SPD ~35% matching typical Xenon simulator
SPC >97%
Customizable steady-state light source
Proven Stability
The Nexun Perovskite is production-proven in 24/7, 10s cycle time and retains its A+ A+ A+ rating over time, in the harshest conditions, which is often not the case of other simulators thanks to advanced thermal management and precise, in-house designed, high accuracy electronic regulation.
Light source Long Lifetime
With an LED lifetime of over 36’000’000 flashes; ensure the minimum maintenance requirements at the lowest ownership cost.
Industry’s most advanced software
The Nexun is powered by the industry’s most advanced software, with functionalities that speed up the lab process, improve traceability and work efficiency while limiting potential user errors.
Internal Database, External Database, Measurement Drag & Drop, Curve Zooming, Raw data extraction, User Management, Real-Time Curves, Recipes Management… We get you covered!
Advanced Electronic Load
Dynamic IV
To measure the highest capacitive panels
High Hysteresis
The load is optimized for the measurement of high-hysteresis technologies like HJT, ensuring the fastest capacitive discharge of the panel during the measurement.
True 4-point Kelvin Connections
At the difference of most loads on the market, where V- and I- are short-circuited, Avalon’s load has a true, 4-point Kelvin connection with fully isolated I and V channels.
Low Noise, 4’000 Points, 16 bits
The load uses fully independent channels for each of the measured Voltage, Current, and Irradiance. Powered by high speed, 16bit converter with a low-noise optimized front end, a single IV is measured of 4’000 points.
30A, 250V, Multiple Ranges
Measure panels up to 30A and 250V with measurement ranges of 30A, 10A, 4A, 1A, 0.2A and 250V, 180V, 120V, 60V, 15V, 1V
External Calibration
Perform calibration to any external laboratory that has a Fluke 5500A Calibrator. No software is needed.
WPVS Transimpedance amplifier
A WPVS Reference cell can be directly connected to the load, thanks to its trans-impedance amplifier, removing the needs of an external shunt resistor, further reducing uncertainties.
Double Irradiance Channel
Whether you use WPVS or bifacial, you can connect up to 2 reference cells.
4 Raytek IR Temperature Sensor
You can connect up to 4 Infrared temperature sensors, ensuring precise monitoring of the temperature.
8 PT100 Channels
The optional PT100 box allows you to connect up to an 8 PT100 temperature probe for a precise measurement of the temperature coefficients.
0.05% Accuracy
The load is guaranteed to an accuracy of 0.05% to the selected measurement range, ensuring the lowest measurement uncertainties.
With The Nexun Perovskite
Bring your lab and production to a new level with a flexible, modular, and upgradable system.
By Avalon
